6-Inch Gutter Sizing for Southeast Louisiana Homes
A 6-inch gutter is only one part of a working roof-drainage system. Roof area, pitch, valleys, run length, outlet placement, downspout size, discharge direction, and local rainfall exposure all affect whether water leaves the roofline without backing up or spilling over.
This guide explains how those factors work together on Southeast Louisiana homes. Southern Home Improvement Center fabricates and installs 6-inch K-style seamless aluminum gutters, but the final layout should be based on the actual roof rather than gutter width alone.
What a 6-Inch Gutter Does — and What It Cannot Fix
A wider gutter provides more collection space than a smaller residential gutter, but width does not correct a weak drainage layout. A 6-inch trough can still overflow when too much roof area drains into one section, a valley dumps water far from an outlet, the outlet opening is restrictive, the downspout is poorly placed, or debris slows the flow.
What the Larger Trough Helps With
- More room for fast runoff entering from a roof edge
- Better handling of short bursts of heavy Gulf Coast rain
- More margin at moderate roof pitches and longer eaves
- A practical residential profile for many Louisiana homes
- Compatibility with larger residential outlets and downspouts
What Width Alone Does Not Solve
- Too few outlets serving a long gutter run
- Valley water overshooting the front lip
- Standing water caused by poor pitch or movement
- Clogged outlets, elbows, or buried drainage connections
- Water discharged back toward the slab or foundation area
Six Inputs That Determine a 6-Inch Gutter Layout
Professional gutter sizing begins with the roof and drainage path. These inputs explain why two homes with the same linear footage may need different outlet counts, downspout locations, or special treatment near valleys.
1. Roof Area Feeding Each Run
The relevant measurement is not the home’s living area. Each gutter section receives water from a specific roof plane or combination of roof planes, and that contributing area must be considered separately.
2. Roof Pitch
Pitch changes the effective drainage area and the speed at which runoff reaches the eave. A steep roof can deliver water to the gutter faster than a low-slope roof with similar horizontal dimensions.
3. Valleys and Concentrated Flow
A valley can direct water from two roof planes into a narrow section of gutter. That location may need a nearby outlet, a revised downspout position, or a carefully designed diverter.
4. Gutter Run Length
A long uninterrupted run gives water farther to travel. Outlet location and the number of discharge points matter as much as the total length of aluminum installed.
5. Outlet and Downspout Capacity
The outlet opening and downspout must allow collected water to leave the trough. A large downspout cannot perform fully when it is connected through a restrictive outlet.
6. Rainfall and Site Conditions
Local rainfall intensity, nearby trees, roof debris, building height, wind exposure, access, and the final discharge route can all change the recommended layout.
How Roof Features Change the Gutter Plan
The table below shows how common roof conditions affect a 6-inch seamless gutter system. It is a planning guide, not a substitute for measuring the actual drainage area.
| Roof condition | What happens during rain | What should be reviewed |
|---|---|---|
| Long straight eave | Water travels farther before reaching an outlet | Run length, pitch direction, outlet count, and downspout spacing |
| Large inside valley | Two roof planes concentrate runoff into one short area | Outlet proximity, valley discharge point, overshoot risk, and diverter design |
| Upper roof draining onto lower roof | The lower gutter receives runoff from more than one roof level | Total contributing area, impact point, lower-run capacity, and downspout location |
| Steep shingle or metal roof | Water can arrive at the eave quickly and with greater momentum | Gutter position, front-lip overshoot, roof edge details, and outlet relief |
| Multiple corners and short runs | Flow changes direction repeatedly and may collect at miters | Corner sealing, outlet placement, expansion, and accessible cleaning points |
| Heavy tree coverage | Leaves, pine needles, seed pods, and shingle granules collect near outlets | Cleaning access, guard compatibility, outlet inspection, and maintenance frequency |
| Low areas near the home | Downspouts may move roof water efficiently but discharge it where it cannot drain away | Extensions, surface grade, walkways, landscaping, and existing drainage connections |
Why the Downspout Often Controls Performance
The gutter collects runoff, but the outlet and downspout determine how quickly that water can leave. A system can back up even when the trough is wide enough if the exit points are too small, too far apart, blocked, or connected through restrictive turns.

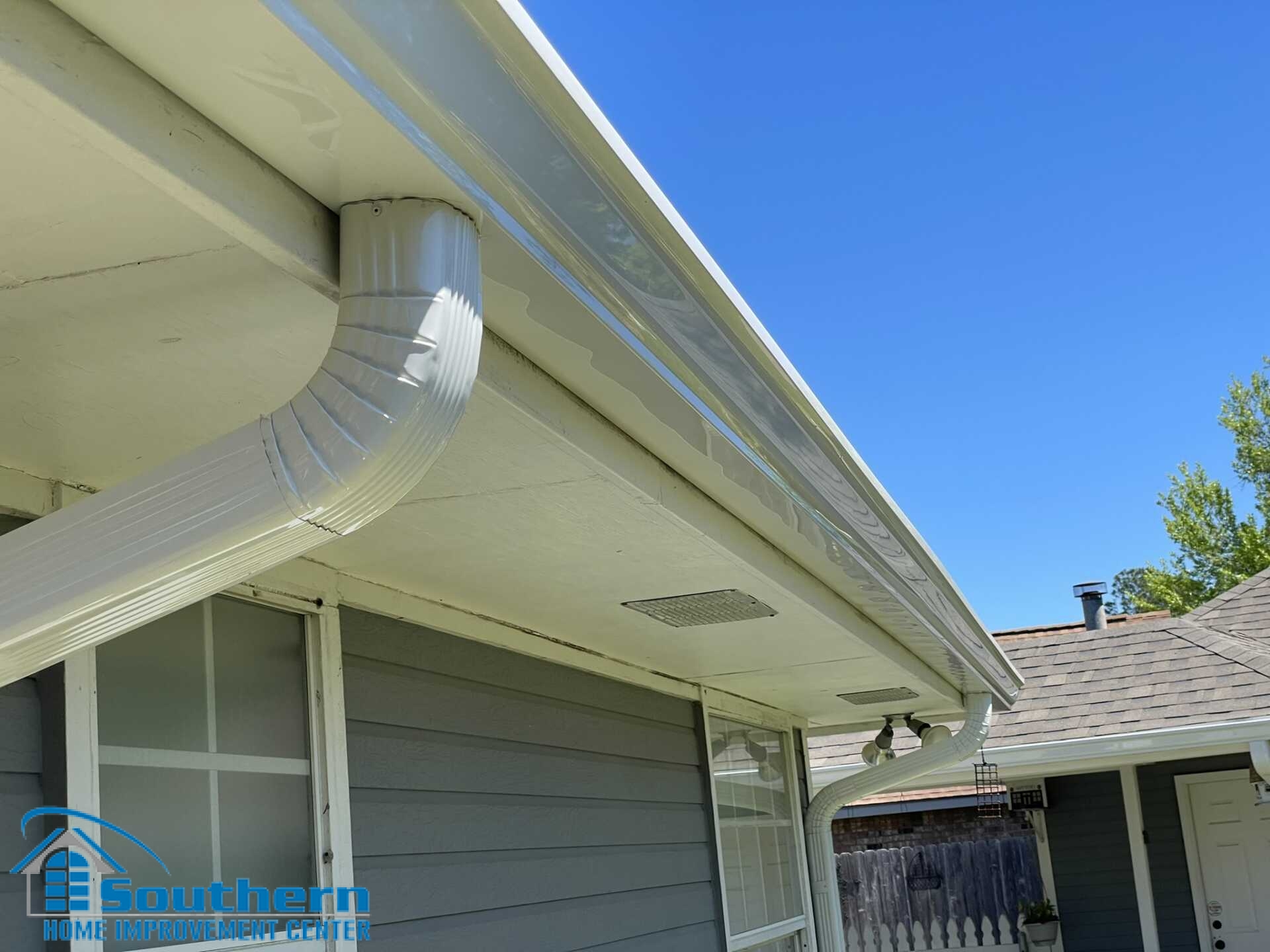

SHIC commonly pairs 6-inch K-style gutters with 3-by-4-inch rectangular downspouts. That combination provides a larger residential drainage path than older systems built around smaller gutters and downspouts, but the correct number and placement still depend on the roof.
Adding another outlet near a major valley can sometimes improve performance more effectively than forcing all water toward one distant downspout. The outlet opening must also suit the connected downspout; otherwise, the restriction remains at the top of the system.
Elbows and offsets should follow a practical route without unnecessary turns. Water also needs a clear destination at ground level so the downspout does not simply move the problem from the roof edge to the base of the home.
Downspout Layout Checklist
- Count the roof planes feeding each gutter section
- Identify valleys and upper-roof discharge points
- Check whether outlets match the downspout opening
- Reduce unnecessary elbows and restrictive offsets
- Keep lower sections accessible for cleaning
- Direct water toward a suitable drainage area
- Review pooling after an actual heavy rain
What Different Overflow Patterns Usually Mean
Where the water spills can help narrow the cause. The same visible symptom does not always require a complete gutter replacement.
Overflow Near One Corner
Possible causes include a clogged outlet, restrictive elbow, poor pitch, too much roof area feeding one drop, or a valley entering far from the downspout.
Overflow Under a Valley
The gutter may have adequate general capacity while the valley delivers water too quickly or too far forward at one concentrated point.
Overflow Along the Full Run
Possible causes include debris, inadequate system capacity, insufficient outlet relief, standing water, loose hangers, or a gutter that is no longer positioned correctly.
Water Behind the Gutter
This can involve roof-edge or flashing integration, gutter position, loose attachment, fascia deterioration, or water bypassing the trough rather than overflowing over the front.
Pooling at the Downspout Base
The roofline system may be draining correctly while the extension, surface grade, underground connection, or final discharge location is inadequate.
Overflow After Cleaning
When debris is no longer blocking the system, the remaining causes may include outlet size, downspout count, run length, valley concentration, pitch, or roof-area mismatch.
Where 7-Inch Gutters Fit Into the Discussion
Southern Home Improvement Center fabricates and installs 6-inch K-style seamless gutters. The 7-inch size is discussed here only to explain why a larger number is not automatically the answer to every drainage problem.
Large commercial-style roofs, unusually complex residential rooflines, very long runs, major valley concentration, or other high-volume conditions may call for a different gutter profile or a project-specific drainage design. In those cases, the roof area, rainfall design input, gutter dimensions, number of sections, and downspout arrangement should be calculated together.
For many residential homes, a properly measured 6-inch system with well-placed outlets and downspouts is the more relevant starting point. When an existing 6-inch gutter overflows, the first step should be to diagnose the layout and restrictions rather than assume that width alone is the cause.
Installation Details That Affect a 6-Inch System
Sizing calculations matter, but field installation determines whether the planned capacity remains available after the system is attached to the home.
Gutter Position
The trough should be positioned to receive runoff from the roof edge without creating avoidable overshoot or allowing water to pass behind the gutter.
Hidden Hangers
Hanger type and spacing should match the substrate, gutter profile, roof conditions, manufacturer requirements, and expected loading.
Controlled Pitch
The run needs enough fall toward the outlets to drain while remaining visually consistent and avoiding low spots that hold water.
Outlet Openings
The cutout and connection should support the selected downspout rather than create a smaller hidden restriction above it.
Corners and Miters
Inside and outside corners require clean fabrication, compatible sealant, secure fastening, and allowance for movement in long aluminum runs.
Roof-Edge Integration
Drip edge, fascia condition, roof covering, and gutter position should work together so water enters the trough instead of the roof-edge assembly.
Valley Control
Diverters and other details should be used selectively and positioned so they guide water without creating debris traps or sending runoff behind the gutter.
Ground-Level Drainage
Extensions and drainage connections should direct water away from vulnerable walls, doors, walkways, landscaping, and low areas near the home.
Maintenance That Preserves Available Capacity
A correctly sized system cannot use its full drainage path when leaves, pine needles, shingle granules, nests, or compacted debris cover the outlet.
Routine Inspection Points
- Remove debris from troughs and outlet openings
- Flush downspouts and check the lower elbow
- Look for standing water after cleaning
- Check loose hangers, separated corners, and movement
- Inspect fascia staining and water marks behind the gutter
- Confirm extensions still discharge in the intended direction
After a Major Storm
- Check valleys for leaves, twigs, and roof debris
- Look for new overflow marks on siding or fascia
- Verify downspouts have not separated at elbows
- Check whether extensions shifted or washed out soil
- Photograph damaged or displaced components
- Arrange an inspection when water entered behind the system
Gutter guards can reduce the amount of larger debris entering the trough, but they do not remove the need to inspect valleys, guard surfaces, outlets, and downspouts. The maintenance plan should reflect the property’s tree coverage and roof design.
6-Inch Gutter Sizing FAQs
Are 6-inch gutters large enough for every Louisiana home?
No single gutter size fits every roof. Six-inch K-style gutters are a practical choice for many homes, but the roof area, pitch, valleys, run length, rainfall exposure, outlets, downspouts, and final discharge path must still be evaluated.
Why can a 6-inch gutter overflow even when it is clean?
The cause may be insufficient outlet relief, a restrictive opening, too few downspouts, a long run, poor pitch, valley concentration, incorrect positioning, roof-edge bypass, or more roof area feeding the section than the layout can handle.
What downspout size does SHIC use with 6-inch gutters?
SHIC commonly uses 3-by-4-inch rectangular downspouts with 6-inch K-style gutters. The number and location of downspouts are determined by the roof layout and drainage path.
Will adding another downspout help an overflowing gutter?
It may help when one outlet is serving too much roof area or water has too far to travel. The existing gutter condition, pitch, outlet size, valley location, and discharge destination should be checked before adding another downspout.
Do I need a splash guard under every roof valley?
No. A guard or diverter should respond to an actual concentration or overshoot problem. Poorly placed accessories can trap debris or send water behind the gutter, so the valley and outlet layout should be evaluated first.
Does SHIC install 7-inch gutters?
No. SHIC fabricates and installs 6-inch K-style seamless aluminum gutters. Information about larger systems is included only to explain when a different project-specific drainage design may be appropriate.
Can the gutter system be evaluated during roof replacement?
Yes. Coordinating the gutter and roof-edge review can help address drip edge, fascia condition, valley discharge, roof runoff, and gutter positioning as connected parts of the exterior drainage system.
Do gutter guards eliminate cleaning?
No. Guards can reduce larger debris in the trough, but guard surfaces, roof valleys, outlets, and downspouts still need periodic inspection and cleaning.
Request a 6-Inch Gutter Evaluation
Southern Home Improvement Center can evaluate the roofline, valleys, gutter runs, outlets, downspouts, fascia condition, and final discharge route before preparing a written estimate for a 6-inch seamless gutter system.
